border-inline

Avatar of Joel Olawanle
Joel Olawanle on (Updated on )

UGURUS offers elite coaching and mentorship for agency owners looking to grow. Start with the free Agency Accelerator today.

border-inline is a CSS logical shorthand property that combines border-inline-color, border-inline-style, and border-inline-width into a single declaration, styling an element’s borders in the inline (left and right) direction.

.element {
  border-inline: 5px solid red;
  writing-mode: horizontal-tb;
}

border-inline is the logical equivalent to physical properties including border-left and border-right (or border-top and border-bottom, depending on the writing-mode). It is defined in the CSS Logical Properties and Values Level 1 specification which is in Editor’s Draft at the time of this writing. The property is also the companion to border-block, which styles borders that flow in the block (top and bottom) direction.

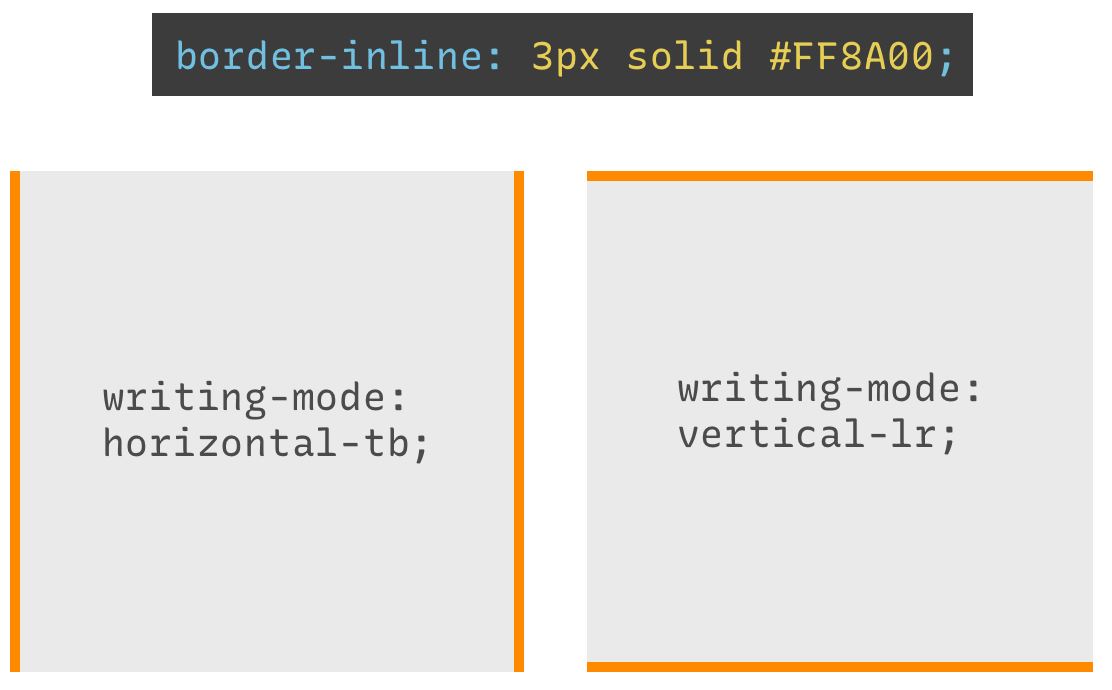

Two light gray boxes, side-by-side-. One has a solid orange border on the left and right. The one of the right has the same borders, but on the top and bottom. The left box is in a horizontal writing mode and the right box is in a vertical writing mode.
border-inline styles the borders in the inline direction, left and right, of an element by default, but it adapts to borders in the block direction, top and bottom, when switching the writing-mode.

The writing-mode defaults to horizontal top-to-bottom if it is not explicitly declared.

The writing mode sets the direction

The direction of the borders depends on the writing-mode property. When the writing mode is set to the default horizontal direction, border-inline is applied to the left and right borders of an element. Conversely, a vertical writing-mode, applies border-inline to the top and bottom borders.

Syntax

The border-inline logical property is a shorthand for setting both the start and end border-inline-width, border-inline-style and border-inline-color in a single declaration. Again, the direction of “start” and “end” depends on the elements writing mode.

border-inline: <border-inline-width> || <border-inline-style> || <border-inline-color>

Browser support

IEEdgeFirefoxChromeSafariOpera
No92 166+87+14.1+73+
iOS
Safari
Android ChromeAndroid FirefoxAndroid BrowserOpera Mobile
14.7+92+90+92+64 1
Source: caniuse

1 Can be enabled by setting #enable-experimental-web-platform-features to enabled.

Constituent properties

Let’s look specifically at the border-inline-width, border-inline-style and border-inline-color — the three properties that make up the border-inline shorthand.

border-inline-width

border-inline-width is pretty much what you’d expect to get from the border-width property: it defines the thickness of the logical inline borders of an element. The big difference being that border-inline-width adapts to the element’s writing mode.

/* <'border-inline-width'> values */
border-inline-width: 15px;
border-inline-width: thin; /* equivalent to 1px */
border-inline-width: medium; /* equivalent to 3px */
border-inline-width: thick; /* equivalent to 5px */

/* Global values */
border-inline-width: inherit;
border-inline-width: initial;
border-inline-width: revert;
border-inline-width: unset;
  • Initial: medium
  • Applies to: Same as border-left-width
  • Inherited: no
  • Percentages: n/a
  • Computed value: Same as corresponding border-*-width properties
  • Canonical order: per grammar
  • Animation type: discrete

border-inline-width is also considered a shorthand property even though it is a constituent of border-inline. It includes the following properties to control the widths of each individual border in the start and end direction of an element:

  • border-inline-start-width: The width of the left border in a horizontal writing mode, the top border in a vertical left-to-right writing mode, and the bottom border in a vertical right-to-left writing mode.
  • border-inline-end-width: The width of the right border in a horizontal writing mode, the bottom border in a vertical left-to-right writing mode, and the top border in a vertical right-to-left writing mode.
IEEdgeFirefoxChromeSafariOpera
No92 166+87+14.1+73+
iOS
Safari
Android ChromeAndroid FirefoxAndroid BrowserOpera Mobile
14.7+92+90+92+64 1
Source: caniuse

1 Can be enabled by setting #enable-experimental-web-platform-features to enabled.

border-inline-style

border-inline-style is the logical equivalent to border-style and is used exactly the same way to specify the type of line drawn around the element. In fact, it takes the exact same values as well.

/* <'border-block-style'> values */
border-inline-style: hidden;
border-inline-style: solid
border-inline-style: dashed;
border-inline-style: dotted;
border-inline-style: double;
border-inline-style: groove;
border-inline-style: ridge;
border-inline-style: inset;
border-inline-style: outset;

/* Global values */
border-inline-style: inherit;
border-inline-style: initial;
border-inline-style: revert;
border-inline-style: unset;
  • Initial: none
  • Applies to: Same as border-left-style
  • Inherited: no
  • Percentages: n/a
  • Computed value: Same as corresponding border-*-style properties
  • Canonical order: per grammar
  • Animation type: discrete

border-inline-style is also considered a shorthand property. It includes the following properties to control the type of line drawn for individual borders in the start and end direction of an element:

  • border-inline-start-style: The style of the left border in a horizontal writing mode, the top border in a vertical left-to-right writing mode, and the right border in a vertical right-to-left writing mode.
  • border-inline-end-style: The style of the right border in a horizontal writing mode, the bottom border in a vertical left-to-right writing mode, and the top border in a vertical right-to-left writing mode.
IEEdgeFirefoxChromeSafariOpera
No92 166+87+14.1+73+
iOS
Safari
Android ChromeAndroid FirefoxAndroid BrowserOpera Mobile
14.7+92+90+92+64 1
Source: caniuse

1 Can be enabled by setting #enable-experimental-web-platform-features to enabled.

border-inline-color

border-inline-color is used to specify the border color.

border-inline-color: yellow;
border-inline-color: #F5F6F7;
border-inline-color: rgba(170, 50, 220, .6);
border-inline-color: hsla(50, 100%, 50%, .6);

/* Global values */
border-inline-color: inherit;
border-inline-color: initial;
border-inline-color: revert;
border-inline-color: unset;
  • Initial: none
  • Applies to: Same as border-left-color
  • Inherited: no
  • Percentages: n/a
  • Computed value: Same as corresponding border-*-color properties
  • Canonical order: per grammar
  • Animation type: by computed value type

border-inline-color is also considered a shorthand property. It includes the following properties to control the type of line drawn for individual borders in the start and end direction of an element:

  • border-inline-start-color: The color of the left border in a horizontal writing mode, the top border in a vertical left-to-right writing mode, and the bottom border in a vertical right-to-left writing mode.
  • border-inline-end-color: The color of the bottom border in a horizontal writing mode, the right border in a vertical left-to-right writing mode, and the left border in a vertical right-to-left writing mode.
IEEdgeFirefoxChromeSafariOpera
No79+41+69+12.1+56+
iOS
Safari
Android ChromeAndroid FirefoxAndroid BrowserOpera Mobile
12.2+92+90+92+64
Source: caniuse

Let’s talk about declaring just one side

But wait! You might be thinking of how you could just declare border for just one side of your container instead of having it left and right or top and bottom. If we were working with physical CSS properties, then we could simply reach for the individual border-left, border-right, border-top, and border-bottom properties.

But for Logical Properties, we make use of border-inline-start, border-inline-end, both of set individual borders. Let’s look specifically at both and see how they work.

border-inline-start

border-inline-start styles the logical “starting” border of an element. So, if we were working in, say, a default horizontal top-to-bottom writing mode, then the left border is the start and — spoiler alert — the right border is the end.

.box {
  border-inline-start: 5px solid red;
  writing-mode: horizontal-tb;
  height: 200px;
  width: 200px;
}

But! If we were to change the writing direction to, say, vertical left-to-right, then the starting edge is rotated 90 degrees, which makes the top border the start.

And, if we switch things up to vertical right-to-left, you’ve can probably already guess it: the bottom border becomes the start.

Writing modeStarting border
horizontal-tbLeft border
vertical-lrTop border
vertical-rlTop border

border-inline-end

border-inline-end is everything we just looked at with border-inline-start, only in the opposite direction. So, if the “start” in a horizontal top-to-bottom writing mode is the left border, the “end” is the right border.

.box {
  border-inline-end: 5px solid red;
  writing-mode: horizontal-tb;
  height: 200px;
  width: 200px;
}
Writing modeEnding border
horizontal-tbRight border
vertical-lrBottom border
vertical-rlBottom border

Constituents to the constituents!

We just saw how border-inline is shorthand for border-inline-start and border-inline-end. We also know that border-inline takes three other properties as its values:

  • border-inline-width
  • border-inline-style
  • border-inline-color

Well, if you can believe it, each of those properties are also shorthand for individual properties of their own. We can actually use these to style the width, style, and color of each individual border of an element by inserting “start” and “end” in the property name:

Start border propertiesWhat it does
border-inline-start-widthSets the width of the “starting” border
border-inline-start-styleSets the line style of the “starting” border
border-inline-start-colorSets the color of the “starting” border
End border propertiesWhat it does
border-inline-end-widthSets the width of the “ending” border
border-inline-end-styleSets the line style of the “ending”border
border-inline-end-colorSets the color of the “ending”border
